1008 19MM MSG

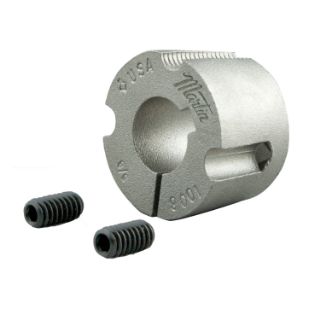

Picture of 1008 19MM MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
1008 19MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$19.34 / EA

Description

Brand Name

Martin

Description

Martin Taper Lock Bushing, 19 mm Bore Dia, 1.386 mm Barrel Dia, 1-15/16 in Hub Dia, 8 deg Taper, 1-21/64 in Bolt Circle, 2 Bolt Holes, 1/4-20 x 1/2 in Screw, 1200 in-lb, For Use With: Taper Bushed Parts, 7/8 in Overall Length, 6 x 2.8 mm Keyway, Steel

Standards

ANSI B15.1

Features

  • Size 1008 bushing
  • Tolerances meet or exceed industry guidelines and standards
  • TB Bushings are designed for flush mounting and do not have a flange
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ taper bushings

Includes

(1) IS-MTB-2 Instruction Sheet and (2) 16C32KSO Setscrews

Specifications

Barrel Diameter:1.386 in
Bolt Circle Diameter:1-21/64 in
Bore Diameter:19 mm
Country of Origin:US
Hub Diameter:1-15/16 in
Keyway Size:6 x 2.8 mm
Material:Steel
Number of Bolt Holes:2
Overall Length:7/8 in
Screw Size:1/4-20 x 1/2 in
Suitable For Use With:Taper Bushed Parts
Taper:8 deg
Torque Rating:1200 in-lb

Products Specifications

Brand Name
Martin Sprocket & Gear
