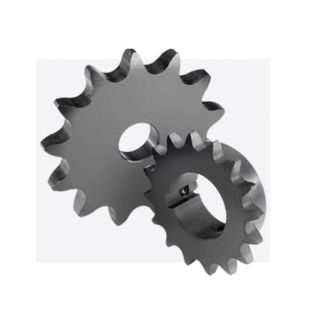

Actual Product May Vary From Image

100BS40 X 1 1/4 BLT

Name: 100BS40 X 1 1/4 BLT
Brand: Bearings Limited
SKU: 100BS40 X 1 1/4 BLT
Availability: OutOfStock

Sprocket, 1 1/4" Pitch, 40 Teeth, 1 1/4" Finished Bore with Keyway & Set Screws

Manufacturer part number: 100BS40 X 1 1/4

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

TRITAN

Forged Steel Construction. Black Oxide finish for corrosion resistance and lasting durability. Includes Keyway & 2 Set Screws with Nyloc tape

ANSI Chain Size:	100
Bore Diameter:	1 1/4 Inch
Bore Type:	Finished Bore with Keyway & Set Screw
Color /Coating:	Black Oxide
Keyway Width:	1/4"
Length Thru Bore (L):	2.5"
Number of Chain Rows:	1
Outside Diameter:	16.63"
Pitch Diameter:	15.933"
Tooth Width:	0.692"
Weight (Lbs):	46.9
