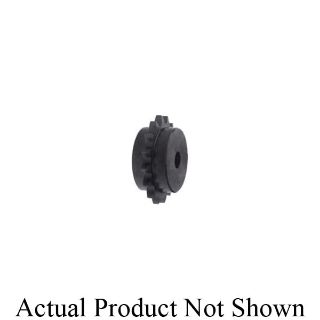

Actual Product May Vary From Image

100C70 BRN

Name: 100C70 BRN
Brand: Regal Rexnord
SKU: 100C70 BRN
Availability: OutOfStock

Browning® 3402104 Single Strand Minimum Bore Type C Roller Chain Sprocket, 5-1/4 in Dia Bore, 28.58 in OD, #100 Chain, 70 Teeth, 1-1/4 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3402104

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Minimum Bore Type C

Description

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type C, 5-1/4 in Bore Dia, 28.58 in Outside Dia, #100 Chain, 70 Teeth, 1-1/4 in Pitch, 27.862 in, 7 in Hub Dia, 3-3/4 in Length Through Bore, Steel

Application

Agitators, Crushing Machinery, Paper Industry Machinery, Fan and Blowers, Pumps, Mixers, Mills, Screens and Textile Industries

Standards

ANSI Specified

Features

Larger hub diameter allows larger bore capacity
Maximum bore shown will accommodate standard keyways and setscrews over keyway
Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
For use with 1-1/4 in pitch ANSI chain

Specifications

Bore Diameter:	5-1/4 in
Chain Size:	#100
Country of Origin:	CN
Hub Diameter:	7 in
Length Through Bore:	3-3/4 in
Material:	Steel
Number of Teeth:	70
Outside Diameter:	28.58 in
Pitch:	1-1/4 in
Pitch Diameter:	27.862 in
