100E19 MSG

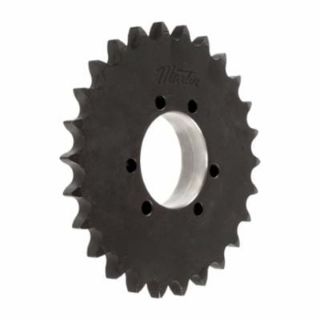

Martin 100E19 QD Bushed Type B1 Single Pitch Roller Chain Sprocket, 8.24 in OD, #100 Chain, 19 Teeth, 1-1/4 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 100E19
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$194.57

Product Details

Brand Name

Martin

Type

QD Bushed Type B1

Description

QD (quick detachable)is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.
Martin Single Pitch Roller Chain Sprocket, QD Bushed Type B1, 8.24 in Outside Dia, #100 Chain, 19 Teeth, 1-1/4 in Pitch, 7.594 in, 6 in Hub Dia, 2-5/8 in Length Through Bore, Type E QD® Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:Type E QD®
Chain Size:#100
Country of Origin:US
Hub Diameter:6 in
Length Through Bore:2-5/8 in
Material:Steel
Number of Teeth:19
Outside Diameter:8.24 in
Pitch:1-1/4 in
Pitch Diameter:7.594 in
