100E19H MSG

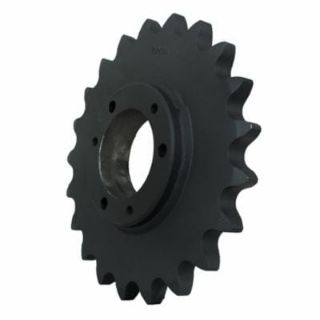

Martin Saber Tooth® 100E19H QD Bushed Type B1 Single Pitch Roller Chain Sprocket With Hardened Teeth, 8.241 in OD, #100 Chain, 19 Teeth, 1-1/4 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 100E19H
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$242.38

Product Details

Brand Name

Martin

Type

QD Bushed Type B1

Description

Martin Saber Tooth® sprockets have hardened teeth, which provide longer chain and sprocket life. The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 rpm.
Martin Saber Tooth® Single Pitch Roller Chain Sprocket, QD Bushed Type B1, 8.241 in Outside Dia, #100 Chain, 19 Teeth, 1-1/4 in Pitch, 7.594 in, 6.24 in Hub Dia, 2-5/8 in Length Through Bore, Type E QD® Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:Type E QD®
Chain Size:#100
Country of Origin:US
Hub Diameter:6.24 in
Length Through Bore:2-5/8 in
Material:Steel
Number of Teeth:19
Outside Diameter:8.241 in
Pitch:1-1/4 in
Pitch Diameter:7.594 in
