100FE BSF

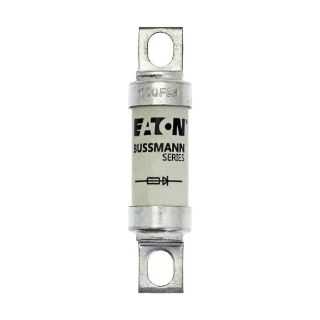

Bussmann 100FE British Style High Speed Fuse, 100 A, 690 VAC, 200 kAIC Interrupt
Manufacturer: Bussmann
Manufacturer part number: 100FE
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$215.49

Product Details

Brand Name

Bussmann

Type

British Style

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.
Bussmann High Speed Fuse, British Style, Indicating/Non-Indicating: Non-Indicating, 100 A, 690 VAC, 200 kAIC Interrupt, Blade End Terminal, Stud Mount, 77 mm L x 17.1 mm W x 19.1 mm H Body Size

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems

Standards

BS 88 Part 4 | CCC Certified | CE Certified | IEC 60269 Part 4 | RoHS Compliant | UL Listed | UL Recognized

Features

  • Excellent cycling capability
  • Excellent DC performance
  • Low arc voltage
  • 23 W power loss
  • Low arc voltage, excellent cycling capacity, excellent DC performance, power loss 23 W

Specifications

Amperage Rating:100 A
Body Size:77 mm L x 17.1 mm W x 19.1 mm H
Body Type:Cartridge
Class:AR
Country of Origin:IN
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:200 kA
Mounting Type:Stud
Series:FE Series
Terminal Type:Blade
Voltage Rating:690 V
