100K07CR BSF

Name: 100K07CR BSF
Brand: Bussmann
SKU: 100K07CR BSF
Availability: OutOfStock

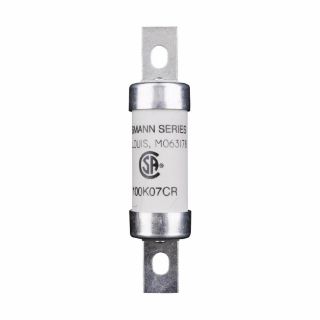

Bussmann 100K07CR Canadian Non-Indicating Cable Limiter Fuse, 100 A, 600 VAC, 200 kA Interrupt, Class: gG/gL, Cartridge Blade Body

Manufacturer: Bussmann

Manufacturer part number: 100K07CR

Availability: Expected Leadtime 28 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Canadian Non-Indicating

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Cable Limiter Fuse, Canadian Non-Indicating, 100 A, 600 VAC, 200 kA Interrupt, Class: gG/gL, Bolted-Down Terminal, Stud Mounting, Cartridge Blade Body, Ceramic, 0.88 in Dia x 30.75 in L Body

Application

Motor Control Circuits, Contactors and Overload Protection Relays Applications

Standards

CE Certified | CSA C22.2 No. 106M1992 | BS 88:2 | IEC 60269:2 | IEC 60947-4

Features

Package Type: Standard
Width: 0.75 in
Weight: 0.117 lbs
Dimensions: 0.88 in Dia x 3.75 in L
Length: 0.75 in
Height: 3.625 in
Indicator: Non-Indicating

Specifications

Amperage Rating:	100 A
Body Size:	0.88 in Dia x 3.75 in L
Body Type:	Cartridge
Class:	gG/gL
Country of Origin:	GB
Interrupt Rating:	200 kA
Material:	Ceramic
Mounting Type:	Stud
Series:	K07CR
Terminal Type:	Bolted-Down
Voltage Rating:	600 VAC
