100NTR20 UST

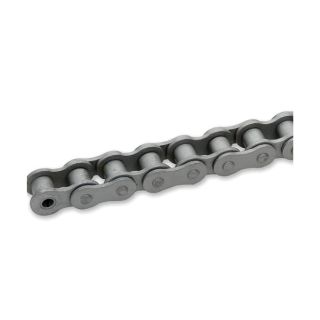

Tsubaki® 100NTR50 Neptune® Drive Chain, 50 ft OAL, 1-1/4 in Pitch, 3/4 in Dia x 3/4 in W Roller
Manufacturer: US Tsubaki
Manufacturer part number: 100NTR50
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Tsubaki®

Description

Neptune® chain resists corrosion when exposed to harsh outdoor environments, including seawater. The exclusive Neptune® surface treatment process gives the chain its unique matte grey color and provides a protective finish that is more corrosion resistant than Nickel Plated chains. Neptune® chain has the same high maximum allowable load as our standard carbon steel roller chain.
Tsubaki® Drive Chain, Series: Neptune®, 1-1/4 in Pitch, 3/8 in Pin Dia, 3/4 in Roller Dia, 3/4 in Roller Width, 1.185 in Plate Height, 0.156 in Plate Thickness, 1 Strand, 26460 lb Tensile, 50 ft Overall Length, Zinc Plated

Standards

ANSI 100

Features

  • Anti-corrosive and heat resistant
  • Riveted pin construction

Specifications

Country of Origin:CN
Finish:Zinc Plated
Number of Strands:1
Overall Length:50 ft
Pin Diameter:3/8 in
Pitch:1-1/4 in
Plate Height:1.185 in
Plate Thickness:0.156 in
Roller Diameter:3/4 in
Roller Width:3/4 in
Series:Neptune®
Tensile Strength:26460 lb
