100Q22H MSG

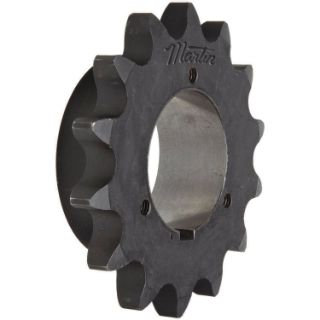

Martin 100Q22H Type 4 Single Strand Welded Bushed Roller Chain Sprocket With Hardened Teeth, 0.75 to 2.688 in Dia Bore, 9.444 in OD, #100 Chain, 22 Teeth, 1-1/4 in Pitch, Steel
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 100Q22H
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$338.64

Product Details

Brand Name

Martin

Type

Type 4 Single Strand Welded Bushed

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.
Martin Roller Chain Sprocket, Type 4 Single Strand Welded Bushed, 0.75 to 2.688 in Bore, 9.444 in OD, #100 Chain, 22 Teeth, 1-1/4 in Pitch, 8.7833 in Pitch Diameter, 4-1/4 in Diameter Hub, 1/2 in Keyway, 1-3/4 in Length Through Bore, MST® Q1 Bushing, Steel

Standards

ANSI Specified | B29.1 - 1975 | CEMA Standard | MPTA | NIBA Certified | PTDA Approved

Features

  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
  • Bores are concentric to pitch line, minimizing run out
  • Interchangeable with other manufacturer's split-taper bushings
  • Manufactured of high carbon steel

Specifications

Bore Diameter:0.75 to 2.688 in
Bushing Type:MST® Q1
Chain Size:#100
Hub Diameter:4-1/4 in
Keyway Size:1/2 in
Length Through Bore:1-3/4 in
Material:Steel
Number of Teeth:22
Outside Diameter:9.444 in
Pitch:1-1/4 in
Pitch Diameter:8.7833 in
