100Q24H MSG

Name: 100Q24H MSG
Brand: Martin Sprocket & Gear
SKU: 100Q24H MSG
Price: 359.03 USD
Availability: OutOfStock

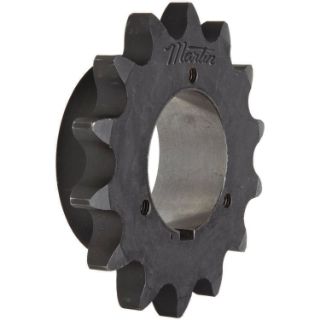

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

100Q24H

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$359.03 / EA

Description

Brand Name

Martin

Type

Type 4 Single Strand Welded Bushed

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Roller Chain Sprocket, Type 4 Single Strand Welded Bushed, 0.75 to 2.688 in Bore, 10.245 in OD, #100 Chain, 24 Teeth, 1-1/4 in Pitch, 9.5766 in Pitch Diameter, 4-1/4 in Diameter Hub, 1/2 in Keyway, 1-3/4 in Length Through Bore, MST® Q1 Bushing, Steel

Standards

Features

Interchangeable with other manufacturer's split-taper bushings
Precise machining and processes ensure consistent finish and high quality
Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
Bores are concentric to pitch line, minimizing run out

Specifications

Bore Diameter:	0.75 to 2.688 in
Bushing Type:	MST® Q1
Chain Size:	#100
Country of Origin:	US
Hub Diameter:	4-1/4 in
Keyway Size:	1/2 in
Length Through Bore:	1-3/4 in
Material:	Steel
Number of Teeth:	24
Outside Diameter:	10.245 in
Pitch:	1-1/4 in
Pitch Diameter:	9.5766 in
