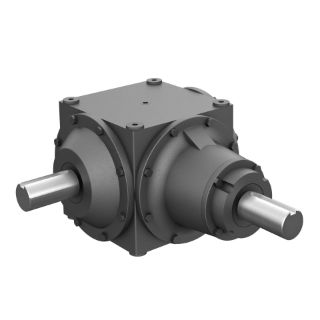

Actual Product May Vary From Image

1010 1.5/1 D SP HUB

Name: 1010 1.5/1 D SP HUB
SKU: 1010 1.5/1 D SP HUB
Availability: OutOfStock

Hub City® 0220-06308 1010 Right Angle Spiral Single Reduction Style D Bevel Gear Reducer, Shaft Input, Shaft Output, 173 hp, 1.5:1 Gear, 1166.7 rpm Maximum Output, 9350 in-lb Torque Rating

Manufacturer part number: 0220-06308

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style D

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style D, Series: 1010, 1.5:1 Gear Ratio, 173 hp, Shaft Input, Shaft Output, 2 in Dia x 4 in L Input, 2 in Dia Output, 1166.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 9350 in-lb, 15 in Centre Distance, 1/2 x 1/4 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Ductile Iron, 19-3/4 in D x 9-1/2 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged ductile iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	15 in
Country of Origin:	US
Dimensions:	19-3/4 in D x 9-1/2 in H
Efficiency:	97.5 %
Gear Ratio:	1.5:1
Horsepower:	173 hp
Input Maximum Speed:	1750 rpm
Input Size:	2 in Dia x 4 in L
Input Type:	Shaft
Keyway Size:	1/2 x 1/4 in Input
Lubrication Type:	Conventional Oil
Material:	Ductile Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	1166.7 rpm
Output Size:	2 in Dia
Output Type:	Shaft
Series:	1010
Torque Rating:	9350 in-lb
