101079.00 LEE

Name: 101079.00 LEE
Brand: Leeson Electric
SKU: 101079.00 LEE
Availability: OutOfStock

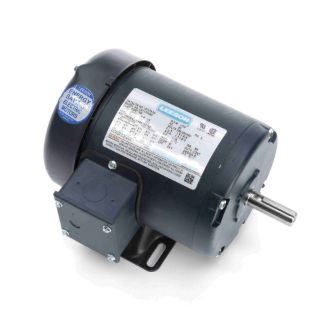

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

101079.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Ultimate e® AC Motor, 4-Pole Continuous Duty, General Purpose AC Motors Application, 0.33 hp, 208 to 230/460 VAC, 1.5 to 1.6/0.8 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, S56 Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 16.03 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 9.69 in L x 6.5 in W x 6.62 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Standard, epact efficient ratings
Inverter rated
Class B insulation systems 42, 48 and 56 frames
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	1.5 to 1.6/0.8 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	9.69 in L x 6.5 in W x 6.62 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	S56
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	16.03 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
