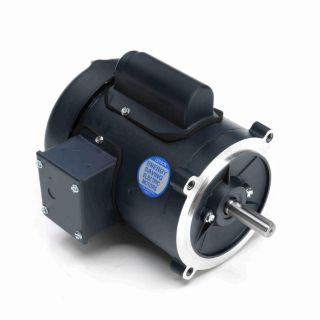

Picture of 101766.00 LEE
Actual Product May Vary From Image

101766.00 LEE

LEESON® 101766.00 Type CF Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.33 hp, 115/208 to 230 VAC, 60 Hz, 48 Frame, 1725 rpm Speed, Round Mount
Manufacturer: Leeson Electric
Manufacturer part number: 101766.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$308.06

Product Details

Brand Name

LEESON®

Type

Type CF Continuous Duty

Description

LEESON® AC Motor, Type CF Continuous Duty, Compressor Motors, Fan & Blower Motors Application, 4-Pole, N NEMA Design Special Features, 0.33 hp, 115/208 to 230 VAC, 6.8/3.0 to 3.4 A, 60 Hz Frequency, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 48 Frame, 5/8 in Dia Shaft, Selective CCW Rotation, 1.149 Service Factor, Ball Bearing, Round Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 9.94 in L x 7.67 in W x 7.4 in H Dimensions

Application

Pumps, Compressors, Blowers, Fans and Other Standard Industrial Applications

Standards

CSA Certified | UL Listed

Features

4-Pole, N NEMA Design

Specifications

Amperage Rating:6.8/3.0 to 3.4 A
Application Type:Compressor Motors, Fan & Blower Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:9.94 in L x 7.67 in W x 7.4 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:48
Frequency Rating:60 Hz
Horsepower:0.33 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round
Number of Speeds:1
Rotation:Selective CCW
Service Factor:1.149
Shaft Size:5/8 in Dia
Speed:1725 rpm
Temperature Rating:40 deg C
Voltage Rating:115/208 to 230 VAC
