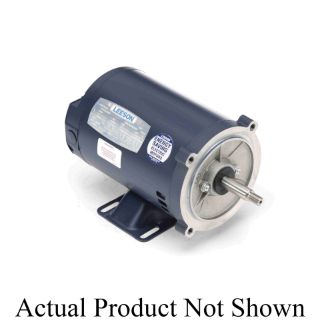

Actual Product May Vary From Image

101776.00 LEE

Name: 101776.00 LEE
Brand: Leeson Electric
SKU: 101776.00 LEE
Price: 467.40 USD
Availability: OutOfStock

LEESON® 101776.00 2-Pole Continuous Duty AC Motor, DP Enclosure, 0.75 hp, 230/460 VAC, 60 Hz, 3 ph Phase, S56J Frame, 3450 rpm Speed, C-Face/Footed/Rigid Base/Flange Mount

Manufacturer: Leeson Electric

Manufacturer part number: 101776.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$467.40

Qty:

Product Details

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

LEESON® AC Motor, 2-Pole Continuous Duty, Jet Pump (JM/JP) Motors Application, Explosion Proof AC Motors Special Features, 0.75 hp, 230/460 VAC, 2.4/1.2 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, DP Enclosure, S56J Frame, 0.63 in Dia x 2.44 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 18 ft-lb Torque, C-Face/Footed/Rigid Base/Flange Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 10 in L x 6.5 in W x 6.31 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	2.4/1.2 A
Application Type:	Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	10 in L x 6.5 in W x 6.31 in H
Enclosure Type:	DP
Frame:	S56J
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	C-Face/Footed/Rigid Base/Flange
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 2.44 in L
Speed:	3450 rpm
Temperature Rating:	40 deg C
Torque Rating:	18 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
