1020 LBB

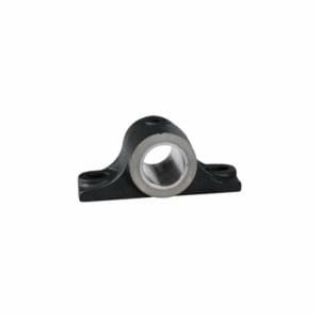

Link-Belt® 1020 1000 1-Piece Normal Duty Rigid Pillow Block Sleeve Bearing Unit, 1-1/4 in Dia Bore, 4 in L Bolt Center-to-Center, 1-1/4 in Base to Bore Centerline, 5-1/4 in OAL x 2-3/8 in OAH
Manufacturer: Rexnord
Manufacturer part number: 1020
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Link-Belt®

Type

1-Piece Normal Duty Rigid

Description

Rigid sleeve bearing units provide compact and reliable usage in applications where continuous operation and uninterrupted service are required. Because the bearing material wears gradually, sudden breakdowns and costly maintenance are minimized. Sleeve bearings can also operate extremely quietly. The standard bearing materials of babbitt, bronze and cast iron will handle a wide variety of applications such as on log decks, sewage treatment equipment, furnaces and ovens, quiet operating fans and blowers, power plant dampers and stokers, oscillating shaft applications and other general conveying and power transmission machinery.
Link-Belt® Pillow Block Sleeve Bearing Unit, 1-Piece Normal Duty Rigid, Series: 1000, 1-1/4 in Bore, 4 in Bolt Center-to-Center Length, 1-1/4 in Base to Bore Centerline, 5-1/4 in Overall Length, 2-1/2 in Overall Width, 2-3/8 in Overall Height, Two-Bolt Base Mounting, 1-5/8 in Base Width, Unsealed Seal, Non-Expansion (Fixed), 190 lb Load, 130 deg F, 700 rpm Maximum, Cast Iron, Powder Coated

Application

Wastewater Management, Dams, Highway Infrastructure, Forest Products, Air Handling and Industrial Furnace

Features

  • Bearing of babbitt or bronze is securely anchored in housing
  • Housing is drilled and tapped for grease cup or lubrication fitting, grooves distribute lubricant over loaded area
  • Finished ends permit flush mounting of pulley, sprocket and collar against bearing when required
  • 2-piece pillow block has shims to provide for adjustment and compensate for wear
  • Mounting surface is finished to provide firm seating on flat support
  • Relubricatable bearing
  • Babbitt sleeve

Specifications

Base to Bore Centerline:1-1/4 in
Base Width:1-5/8 in
Bolt Center-to-Center Length:4 in
Bore Diameter:1-1/4 in
Country of Origin:MX
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:190 lb
Material:Cast Iron
Maximum Speed:700 rpm
Mounting Type:Two-Bolt Base
Overall Height:2-3/8 in
Overall Length:5-1/4 in
Overall Width:2-1/2 in
Seal Type:Unsealed
Series:1000
Temperature Rating:130 deg F
