1026-3M-06 GAT

PowerGrip™ HTD
Manufacturer: Gates
Manufacturer part number: 1026-3M-06
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$12.89

Product Details

Brand Name

Gates

Alternate Supplier #

92932089

Description

PowerGrip™ HTD belts have a larger, more robust tooth profile for increased capacity, as compared to timing belts. 3M and 5M belts are suitable for domestic appliances, office machines, electric hand tools and for applications in the processing and chemical industry. 8M, 14M and 20M belts are used in high-performance drives in the machine tool, paper and textile industries where durability and low maintenance are required.

Features

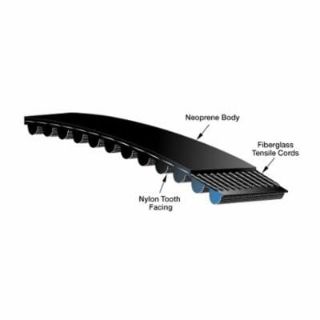

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation. Neoprene body provides protection against grime, grease, oil and moisture. Nylon tooth facing provides a durable wear surface for long service life. Maintenance-free, clean solution for roller chain drive conversion. No lubrication or retensioning required.

Specifications

Belt Back Side:Smooth
Belt Height (in):0.095
Belt Height (mm):2.41
Belt/Slab:Belt
Color:Black
Cord Material:Fiberglass
Country of Origin:US
End:Endless
Fabric Material:Nylon Teeth
GC Base Product:PowerGrip® HTD® Timing Belts - 3mm Pitch
Harmonized Tariff Code:4010.35.4500
Length Pitch (in):40.39
Length Pitch (mm):1026
Material:Polychloroprene (Neoprene)
Max Temp (°C):+100
Max Temp (°F):+212
Min Temp (°C):-30
Min Temp (°F):-22
Number of Teeth:342
Pitch (in):0.118
Pitch (mm):3
Proposition 65:NO
Section:3M
Sided:Single Sided
Sprock Comptab:PowerGrip GT
Standard Width:YES
Stat Conductive:No
Tooth Form:HTD Design
Tooth Height (in):0.048
Tooth Height (mm):1.22
Width (in):0.236
Width (mm):6
