102863.00 LEE

Name: 102863.00 LEE
Brand: Leeson Electric
SKU: 102863.00 LEE
Price: 474.22 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

102863.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$474.22 / EA

Description

Brand Name

LEESON®

Type

Type TN Continuous Duty

Alternate Supplier #

Grainger - 36X810

Description

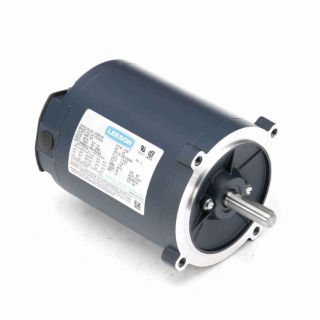

LEESON® AC Motor, Type TN Continuous Duty, Compressor Motors, Fan & Blower Motors Application, 4-Pole, N NEMA Design Special Features, 0.33 hp, 208 to 230/460 VAC, 1.4/0.7 A, 60 Hz Frequency, 1725 rpm Speed, 1 Speed, TENV Enclosure, 48 Frame, 5/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Round Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 9.56 in L x 5.62 in W x 5.62 in H Dimensions

Application

Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications

Standards

CSA Certified | UL Listed

Features

4-Pole, N NEMA Design

Specifications

Amperage Rating:	1.4/0.7 A
Application Type:	Compressor Motors, Fan & Blower Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	9.56 in L x 5.62 in W x 5.62 in H
Enclosure Type:	TENV
Frame:	48
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Round
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
