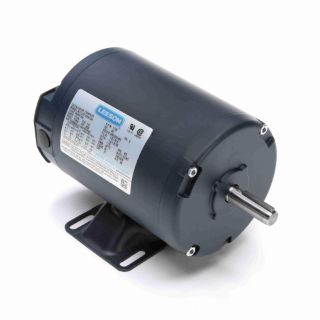

Actual Product May Vary From Image

102918.00 LEE

Name: 102918.00 LEE
Brand: Leeson Electric
SKU: 102918.00 LEE
Price: 509.49 USD
Availability: OutOfStock

LEESON® 102918.00 Type TN Continuous Duty AC Motor, TENV Enclosure, 1/2 hp, 208 to 230/460 VAC, 60 Hz, 48 Frame, 1725 rpm Speed, Rigid Mount

Manufacturer: Leeson Electric

Manufacturer part number: 102918.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$509.49

Qty:

Product Details

Brand Name

LEESON®

Type

Type TN Continuous Duty

Description

LEESON® AC Motor, Type TN Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, 1/2 hp, 208 to 230/460 VAC, 1.9/0.95 A, 60 Hz, 1725 rpm, 1 Speed, TENV, 48 Frame, 5/8 in Dia Shaft, Reversible, Service Factor: 1.149, Ball Bearing, Rigid Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10.06 in L x 6.5 in W x 6.31 in H

Application

Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications

Standards

CSA Certified | UL Listed | UL Recognized

Features

Standard efficient ratings
Inverter-rated, continuous duty
Class B insulation systems - 42, 48 and 56 frames
Shielded ball bearings for direct coupled applications contact your local sales office for belted load applications
Dynamically balanced rotors
Torques exceed NEMA performance standards

Specifications

Amperage Rating:	1.9/0.95 A
Application Type:	Compressor Motors, Fan and Blower Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	10.06 in L x 6.5 in W x 6.31 in H
Enclosure Type:	TENV
Frame:	48
Frequency Rating:	60 Hz
Horsepower:	1/2 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Rigid
Number of Speeds:	1
Rotation:	Reversible
Service Factor:	1.149
Shaft Size:	5/8 in Dia
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	208 to 230/460 VAC
