Actual Product May Vary From Image

102930.00 LEE

Name: 102930.00 LEE
Brand: Leeson Electric
SKU: 102930.00 LEE
Price: 119.95 USD
Availability: OutOfStock

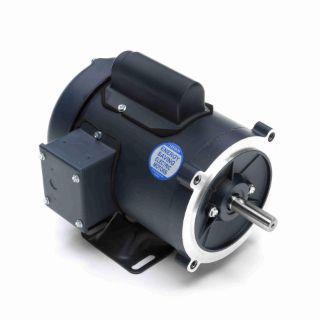

LEESON® 102930.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.33 hp, 115/208 to 230 VAC, 60 Hz, 1 ph Phase, S56C Frame, 1725 rpm Speed, C-Face/Rigid Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 102930.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$119.95

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, Capacitor Start Motors Special Features, 0.33 hp, 115/208 to 230 VAC, 6.2/2.9 to 3.1 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW Rotation, 1.15 Service Factor, Ball Bearing, 15.77 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 10.44 in L x 7.84 in H Dimensions

Application

Pumps, Conveyors, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	6.2/2.9 to 3.1 A
Application Type:	Compressor Motors, Fan and Blower Motors, General Purpose AC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	10.44 in L x 7.84 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	S56C
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	C-Face/Rigid Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	15.77 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/208 to 230 VAC
