Actual Product May Vary From Image

103001A02F060 WOO

Name: 103001A02F060 WOO
Brand: Molex/Woodhead
SKU: 103001A02F060 WOO
Availability: OutOfStock

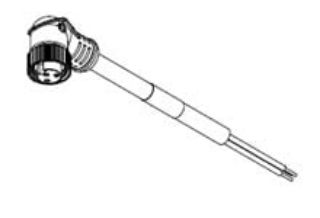

Brad® Mini-Change® 103001A02F060 130006 Size A Single Ended Cordset, 90 deg Female x Straight Pigtail Connector, 1.83 m L Cable, 3 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 103001A02F060

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Brad®

Type

Size A Single Ended

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.

Brad® Mini-Change® Cordset, Size A Single Ended, Series: 130006, 90 deg Female x Straight Pigtail Connector, STOOW Cable, 1.83 m Cable Length, PVC Cable, 3 Pole, Single Keyway, 600 VAC, 13 A, IP67

Standards

UL File No. E152210 | CSA File No. LR6837

Features

This sensor cable comes with a yellow PVC jacket, gold plated copper alloy contacts and black epoxy coated zinc coupling nut
Threaded coupling
IP67 prevents the entry of water during temporary submersion at a limited depth
10.41 mm Dia cable
Patented, Quad Beam™ socket contact with stainless steel sleeve
Maintains consistent pressure on the male pin to ensure optimum conductivity
High performance, long lasting plating that maintains low resistance through many mate/unmate cycles
Molded key indicator
Easier alignment and mating of connector
Provides 100 lb minimum cable strain relief radiates stress in side loaded conditions

Specifications

Amperage Rating:	13 A
Cable Length:	1.83 m
Cable Material:	PVC
Cable Type:	STOOW
Connector Material:	PVC
Connector Type:	90 deg Female x Straight Pigtail
Country of Origin:	MX
Keyway:	Single
NEMA Rating:	IP67
Number of Poles:	3
Series:	130006
Voltage Rating:	600 VAC
