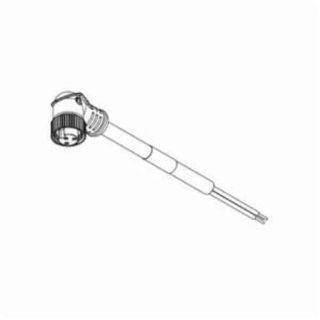

Actual Product May Vary From Image

103001A02F120 WOO

Name: 103001A02F120 WOO
Brand: Molex/Woodhead
SKU: 103001A02F120 WOO
Availability: OutOfStock

Brad® Mini-Change® 103001A02F120 130006 Single Ended A-Size Cordset, 90 deg Female x Pigtail Connector, 12 ft L Cable, 3 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 103001A02F120

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Brad®

Type

A-Size Single End

Description

Brad® Mini-Change® Cordset, Single Ended A-Size, Series: 130006, 90 deg Female x Pigtail Connector, PVC, STOOW Cable, 12 ft Cable Length, PVC Cable, 3 Pole, Single Keyway, 600 V, 13 A

Application

For commercial and industrial light displays, float switches on commercial sump pumps, fractional horse power motors, industrial heaters, industrial refrigeration systems, limit switches, linear position transducers and load cells

Standards

CSA LR6837 | UL E152210

Features

Patented, Quad Beam socket contact with stainless steel sleeve, maintains consistent pressure on the male pin to ensure optimum conductivity
High performance, long-lasting plating that maintains low resistance through many mate /unmate cycles
Easier alignment and mating of connector
Provides 100 pounds minimum cable strain relief radiates stress in side-loaded conditions
Prevents the entry of water during temporary submersion at a limited depth
16 AWG yellow cable
Copper alloy contact, black epoxy coated zinc coupling nut, gold plating mating
0.41 in cable diameter
-20 to 105 deg C operating temperature

Specifications

Amperage Rating:	13 A
Cable Length:	12 ft
Cable Material:	PVC
Cable Type:	STOOW
Connector Material:	PVC
Connector Size:	7/8-16 UN
Connector Type:	90 deg Female x Pigtail
Country of Origin:	MX
Keyway:	Single
NEMA Rating:	NEMA IP67
Number of Poles:	3
Series:	130006
Voltage Rating:	600 VAC
Wire Pin Colors:	Green/Red
