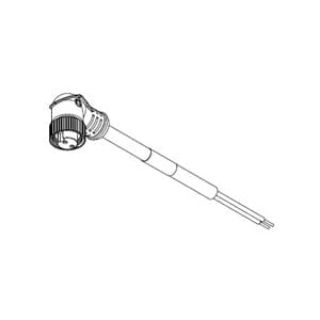

Actual Product May Vary From Image

103001A02F1201 WOO

Name: 103001A02F1201 WOO
Brand: Molex/Woodhead
SKU: 103001A02F1201 WOO
Availability: OutOfStock

Woodhead® Brad® Mini-Change® 130006-0456 A-Size Single End Cordset, 7/8-16 UN 90 deg Female x Pigtail Connector, 12 ft L Cable, 3 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 130006-0456

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

A-Size Single End

Description

Woodhead® Brad® Mini-Change® Cordset, A-Size Single End, Series: 130006, 90 deg Female x Pigtail Connector, 7/8-16 UN Connector, PVC Connector, STOOW Cable, 12 ft Cable Length, PVC Cable, 3 Pole, Single Keyway, 600 VAC/VDC, 13 A, Black/Green/White Wire Pin, NEMA 6P/IP68 NEMA Rating

Standards

CSA LR6837 | RoHS Complient | UL E152210

Features

1 in coupler
3 x 16 AWG STOOW auto color code cable
Type 303 stainless steel coupling nut
PVC connector face
-20 to 105 deg C temperature
0.41 in cable diameter
Threaded style coupling
Gold plated mating

Specifications

Amperage Rating:	13 A
Cable Length:	12 ft
Cable Material:	PVC
Cable Type:	STOOW
Connector Material:	PVC
Connector Size:	7/8-16 UN
Connector Type:	90 deg Female x Pigtail
Keyway:	Single
NEMA Rating:	NEMA 6P/IP68
Number of Poles:	3
Series:	130006
Voltage Rating:	600 VAC/VDC
Wire Pin Colors:	Black/Green/White
