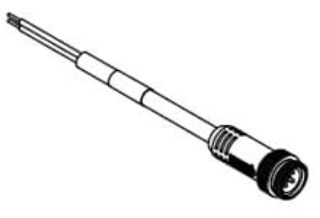

Brad® Mini-Change® Woodhead® 103006A46M020 130061 A-Size/B-Size/C-Size Single Ended Power Drop/Branch Cordset, 1 in Straight Male x Pigtail Connector, 2 m L Cable, 3 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 103006A46M020

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Brad®

Type

A-Size/B-Size/C-Size Single Ended

Description

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change® connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low resistance connection, the patented Quad-Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

Brad® Mini-Change® Woodhead® Power Drop/Branch Cordset, A-Size/B-Size/C-Size Single Ended, Series: 130061, Straight Male x Pigtail Connector, 1 in Connector, PVC Connector, 14 AWG STOOW/TC-ER/Unshielded Stranded Cable, 2 m Cable Length, PVC Cable, 3 Pole, Single Keyway, 600 VAC/VDC, 15 A, Green/Yellow/Black/White Wire Pin, NEMA 6P NEMA Rating

Application

Commercial and Industrial Light Displays, Float Switches on Commercial Sump Pumps, Fractional Horse Power Motors, Industrial Heaters, Industrial Refrigeration Systems, Limit Switches, Linear Position Transducers, Load Cells, Power Connector to Street Light Accessories, Proximity and Photoelectric Sensors, Pumps, Solar Panels and Solenoid Operated Valves

Standards

NFPA 79-2012 | UL 2237 (PVVA) | UL File No. E258922

Features

Patented Quad-Beam™ socket contact with stainless steel sleeve maintains consistent pressure on the male pin to ensure optimum conductivity
Molded key indicator easier alignment and mating of connector
Sealed to an IP67 rating prevents the entry of water during temporary submersion at a limited depth
Gold over nickel plated contacts high performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
Integral strain relief provides 100 lb minimum cable strain relief, radiates stress in side-loaded conditions

Specifications

Amperage Rating:	15 A
Cable Length:	2 m
Cable Material:	PVC
Cable Type:	14 AWG STOOW/TC-ER/Unshielded Stranded
Connector Material:	PVC
Connector Size:	1 in
Connector Type:	Straight Male to Pigtail
Country of Origin:	MX
Keyway:	Single
NEMA Rating:	NEMA 6P
Number of Poles:	3
Series:	130061
Voltage Rating:	600 VAC/VDC
Wire Pin Colors:	Black/Green/White/Yellow
