103396.00 LEE

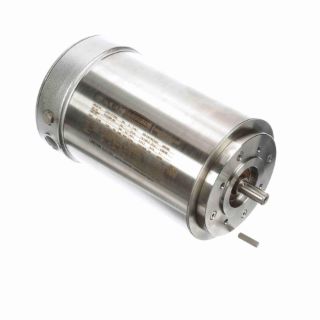

LEESON® Washguard® 103396.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, 71 Frame, 1725 rpm Speed, B14 Flange/Round Mount
Manufacturer: Leeson Electric
Manufacturer part number: 103396.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,307.85

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® AC Motor, 4-Pole Continuous Duty, Special Features: IEC Metric Motors, Washdown Duty Motors, 0.5 hp, 208 to 230/460 VAC, 1.9 to 1.8/0.9 A, 60 Hz, 3 ph, 1725 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 71 Frame, 0.56 in Dia x 1.18 in L Shaft, Reversible, Service Factor: 1.15, Ball Bearing, 24 ft-lb, B14 Flange/Round Mount, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 6.07 in Dia x 11.58 in L

Application

Pharmaceutical, Food Processing, Beverage Industries, Clean Room and Severe Chemical-Processing, Bakery, Commercial and Industrial Applications

Standards

BISSC 769 | CSA Certified | CSA LR33543 | UL E57948

Features

IEC Metric Motors, Washdown Duty Motors

Specifications

Amperage Rating:1.9 to 1.8/0.9 A
Bearing Type:Ball
Country of Origin:US
Dimensions:6.07 in Dia x 11.58 in L
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:71
Frequency Rating:60 Hz
Horsepower:0.5 hp
Insulation Class:Class F
Material:Stainless Steel
Mounting Type:B14 Flange/Round
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:0.56 in Dia x 1.18 in L
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:24 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:208 to 230/460 VAC
