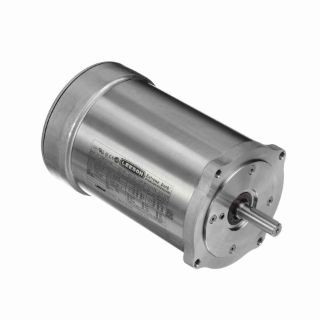

Actual Product May Vary From Image

103413.00 LEE

Name: 103413.00 LEE
Brand: Leeson Electric
SKU: 103413.00 LEE
Price: 1,432.23 USD
Availability: OutOfStock

LEESON® Washguard® Extreme Duck® 103413.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.5 hp, 208 to 230/460 VAC, 60 Hz, 3 ph Phase, S56C Frame, 1725 rpm Speed, Round/C-Face/Footless Mount

Manufacturer: Leeson Electric

Manufacturer part number: 103413.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,432.23

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® Washguard® Extreme Duck® AC Motor, 4-Pole Continuous Duty, 0.5 hp, 208 to 230/460 VAC, 1.9 to 1.8/0.9 A, 60 Hz Frequency, 3 ph ph, 1725 rpm Speed, 1 Speed, Totally Enclosed Nonvented (TENV) Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 24 ft-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 10:1 Variable Torque Speed, 6.07 in Dia x 11.49 in L Dimensions

Application

Bakery, Commercial and Industrial Applications

Standards

BISSC/CE/CSA Certified | UL Listed

Features

All exterior components are 300 series stainless steel
End shields are O-ring sealed to the frame
Double sealed bearings are pre-lubricated with moisture resistant high temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion and ease to clean construction
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
Washguard® efficiencies meet EPAct mandates for non exempt motors when tested without shaft seals
Exclusive IRIS® inverter duty insulation system provides extra protection and long life and especially in inverter-driven applications
IP69K enclosure protection
Q-Car™ rotor cartridge for quick access color coded leads and full fact nameplate is laser etched on the motor frame

Specifications

Amperage Rating:	1.9 to 1.8/0.9 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	6.07 in Dia x 11.49 in L
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	S56C
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	24 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	208 to 230/460 VAC
