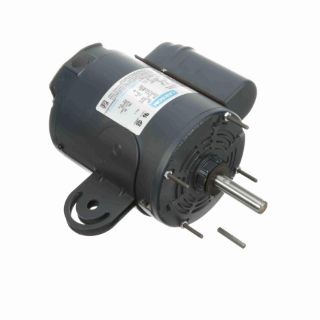

Picture of 103712.00 LEE
Actual Product May Vary From Image

103712.00 LEE

LEESON® 103712.00 4-Pole Continuous Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.25 hp, 115/230 VAC, 60 Hz, 1 ph Phase, 48Y Frame, 1625 rpm Speed, Round Swing Arm Mount
Manufacturer: Leeson Electric
Manufacturer part number: 103712.00
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$465.00

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: General Purpose HVAC Motors, Special Features: Yoke/Pedestal Fan Motors, 0.25 hp, 115/230 VAC, 3.6/1.8 A, 60 Hz, 1 ph, 1625 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 48Y Frame, 0.63 in Dia x 2.56 in L Shaft, Selective CCW, Service Factor: 1, Ball Bearing, 12.25 ft-lb, Round Swing Arm Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 5.66 in Dia x 10.81 in L x 10.61 in H

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Yoke/Pedestal Fan Motors

Specifications

Amperage Rating:3.6/1.8 A
Application Type:General Purpose HVAC Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:5.66 in Dia x 10.81 in L x 10.61 in H
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:48Y
Frequency Rating:60 Hz
Horsepower:0.25 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round Swing Arm
Number of Speeds:1
Phase:1 ph
Rotation:Selective CCW
Service Factor:1
Shaft Size:0.63 in Dia x 2.56 in L
Speed:1625 rpm
Temperature Rating:40 deg C
Torque Rating:12.25 ft-lb
Variable Torque Speed Range:10:1
Voltage Rating:115/230 VAC
