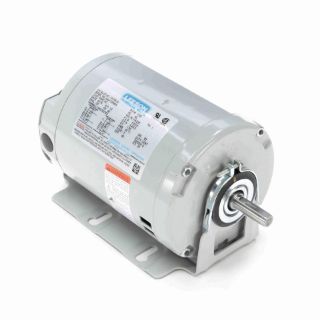

Actual Product May Vary From Image

103795.00 LEE

Name: 103795.00 LEE
Brand: Leeson Electric
SKU: 103795.00 LEE
Price: 276.98 USD
Availability: OutOfStock

LEESON® 103795.00 4-Pole Continuous Duty AC Motor, DP Enclosure, 0.33 hp, 115/230 VAC, 60 Hz, 1 ph Phase, 48 Frame, 1725 rpm Speed, Resilient Base Mount

Manufacturer: Leeson Electric

Manufacturer part number: 103795.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$276.98

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® AC Motor, 4-Pole Continuous Duty, Application Type: Fan and Blower Motors, General Purpose HVAC Motors, 0.33 hp, 115/230 VAC, 5.6/2.8 A, 60 Hz, 1 ph, 1725 rpm, 1 Speed, DP, 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, Selective CCW, Service Factor: 1.35, Ball Bearing, 16.2 ft-lb, Resilient Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 5.67 in Dia x 10.18 in L x 5.81 in H

Application

Ventilation Fans, Belt Driven or Fan-on-Shaft, Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Resilient base for quiet operation
Automatic overload protection
Built-in terminal panel for quick connections
Split phase design

Specifications

Amperage Rating:	5.6/2.8 A
Application Type:	Fan and Blower Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Country of Origin:	MX
Dimensions:	5.67 in Dia x 10.18 in L x 5.81 in H
Enclosure Type:	DP
Frame:	48
Frequency Rating:	60 Hz
Horsepower:	0.33 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Resilient Base
Number of Speeds:	1
Phase:	1 ph
Rotation:	Selective CCW
Service Factor:	1.35
Shaft Size:	1/2 in Dia x 1-1/2 in L
Speed:	1725 rpm
Temperature Rating:	40 deg C
Torque Rating:	16.2 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	115/230 VAC
