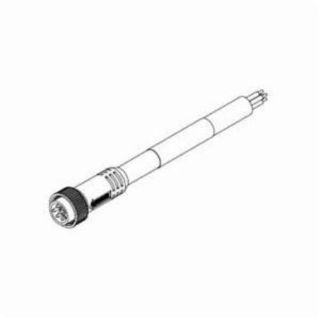

Actual Product May Vary From Image

104002A01F300 WOO

Name: 104002A01F300 WOO
Brand: Molex/Woodhead
SKU: 104002A01F300 WOO
Price: 113.34 USD
Availability: OutOfStock

Woodhead® Brad® Mini-Change® 130006-1016 Single End Cordset, 7/8-16 Straight Male Connector, 30 ft L Cable, 4 Poles, Single Keyway

Manufacturer: Molex/Woodhead

Manufacturer part number: 130006-1016

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$113.34

Qty:

Product Details

Brand Name

Woodhead®

Type

Single End

Description

Brad®® Mini-Change® Connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring.

Woodhead® Brad® Mini-Change® Cordset, Single End, Series: 130006, Straight Male Connector, 7/8-16 Connector, PVC, STOOW Cable, 30 ft Cable Length, PVC Cable, 4 Poles, Single Keyway, 600 VAC, 10 A, NEMA IP67

Standards

UL File No. E46237 | CSA File No. LR6837

Features

Maintains consistent pressure on the male pin to ensure optimum conductivity
High performance, long-lasting plating that maintains low resistance through many mate/unmate cycles
Easier alignment and mating of connector
Provides 100 pounds minimum cable strain relief
Radiates stress in side-loaded conditions
-20 to 105 deg C operating temperature
0.42 in cable diameter
16/4 AWG cable

Specifications

Amperage Rating:	10 A
Cable Length:	30 ft
Cable Material:	PVC
Cable Type:	STOOW
Connector Material:	PVC
Connector Size:	7/8-16
Connector Type:	Straight Male
Keyway:	Single
NEMA Rating:	NEMA IP67
Number of Poles:	4
Series:	130006
Voltage Rating:	600 VAC

Resources

Video
