Picture of 104265 LST
Actual Product May Vary From Image

104265 LST

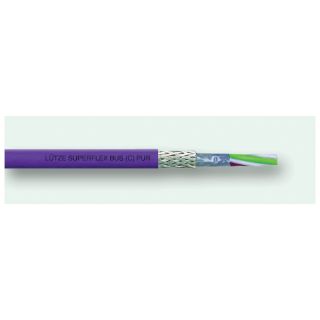

LUTZE SUPERFLEX® 104265 PROFIBUS Shielded Bus Cable, 300 V, (1 Pair) 24 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 104265
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2.88

Product Details

Brand Name

SUPERFLEX®

Type

Shielded

Description

LUTZE SUPERFLEX® Bus Cable, Shielded, Series: PROFIBUS, 300 V, 1 Pair Conductors, Stranded Bare Copper Conductor, 24 AWG Conductor, 0.315 in OD, 24/19 Strands, 165 mOhm Resistance, Polyolefin Insulation, PUR Jacket, Violet Jacket, -30 to 70 deg C Moving/-40 to 80 deg C Fixed

Application

For continuous motion applications, the cabling of industrial field bus systems like PROFIBUS DP, SINEC L2, F.I.P, continuous flexing applications in drag chain or free movement in automation technology, transport, conveyor technology and machine tool manufacturing

Standards

AWM 21198 | CE Certified | CMX 75C | cULus Listed | DIN EN 60332-1-2/60754-1 | HF Certified | IEC 60332-1/60754-1 | NFPA 79 | REACH Compliant | RoHS Compliant | UL 1581 Part VW-1 Flame Test/FT1

Features

  • Compatible with all major drag chain brands
  • High protection against electromagnetic interference (EMI)
  • Talc and silicone-free
  • Halogen-free

Specifications

Conductor Size:24 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:Polyolefin
Jacket Color:Violet
Jacket Material:PUR
Number of Conductors:1 Pair
Outside Diameter:0.315 in
Resistance:165 mOhm
Series:PROFIBUS
Strands:24/19
Temperature Rating:-30 to 70 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
