104335 LST

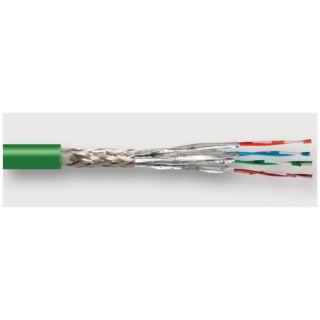

Picture of 104335 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
104335
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1.76 / FT

Description

Brand Name

LUTZE

Type

Cat 5e Shielded

Description

LUTZE Network Cable, Cat 5e Shielded, Series: ETHERNET, 300 V, 4 Pairs Conductors, Stranded Bare Copper Conductor, 26 AWG Conductor, 0.248 in OD, 7 Strands, 273 mOhm Loop Resistance, Polyolefin Insulation, PVC Jacket, Green Jacket, -5 to 70 deg C Moving/-30 to 80 deg C Fixed

Application

For stationary applications, the cabling of industrial ethernet systems, industrial environments and operating conditions with high electrical noise levels, automation technology, transport, conveyor technology and machine tool manufacturing

Standards

cULus Listed | DIN EN 60332-1-2 | IEC 60332-1 | NFPA 79 | REACH Compliant | RoHS Compliant | UL 1581 Part VW-1 Flame Test/FT4 | VDE 0482 322-1-2

Features

  • High protection against electromagnetic interference (EMI)
  • Talc and silicone-free

Specifications

Conductor Size:26 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:Polyolefin
Jacket Color:Green
Jacket Material:PVC
Number of Conductors:4 Pairs
Outside Diameter:0.248 in
Resistance:273 mOhm Loop
Series:ETHERNET
Strands:7
Temperature Rating:-5 to 70 deg C Moving/-30 to 80 deg C Fixed
Voltage Rating:300 V
