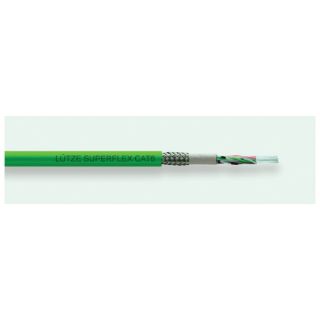

Picture of 104347 LST
Actual Product May Vary From Image

104347 LST

LUTZE SUPERFLEX® 104347 ETHERNET Cat 6 Shielded Network Cable, 300 V, (4 Pairs) 26 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 104347
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$3.62

Product Details

Brand Name

SUPERFLEX®

Type

Cat 6 Shielded

Description

LUTZE SUPERFLEX® Network Cable, Cat 6 Shielded, Series: ETHERNET, 300 V, 4 Pairs Conductors, Stranded Bare Copper Conductor, 26 AWG Conductor, 0.311 in OD, 19 Strands, 159.5 mOhm Loop Resistance, Polyolefin Insulation, PUR Jacket, Green Jacket, -30 to 70 deg C Moving/-40 to 80 deg C Fixed

Application

For continuous motion applications, the cabling of industrial ethernet systems, industrial environments and operating conditions with high electrical noise levels, automation technology, transport, conveyor technology, machine tool manufacturing and continuous flexing applications in drag chains or free movement

Standards

CE Certified | CMX 75C | cULus Listed | DIN EN 60332-1-2/60754-1 | HF Certified | IEC 60332-1/60754-1 | NFPA 79 | REACH Compliant | RoHS Compliant | UL 1581 Part VW-1 Flame Test/FT1 | VDE 0482 322-1-2

Features

  • Compatible with all major drag chain brands
  • High protection against electromagnetic interference (EMI)
  • Talc and silicone-free

Specifications

Conductor Size:26 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:DE
Insulation Material:Polyolefin
Jacket Color:Green
Jacket Material:PUR
Number of Conductors:4 Pairs
Outside Diameter:0.311 in
Resistance:159.5 mOhm Loop
Series:ETHERNET
Strands:19
Temperature Rating:-30 to 70 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
