104349 LST

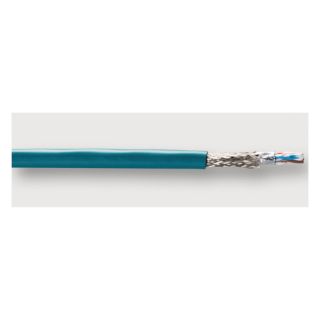

Picture of 104349 LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
104349
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2.64 / EA

Description

Brand Name

LUTZE

Type

Cat 5e Shielded

Description

LUTZE Network Cable, Cat 5e Shielded, Series: ETHERNET, 600 V, 4 Pairs Conductors, Stranded Tinned Copper Conductor, 22 AWG Conductor, 0.338 in OD, 7 Strands, 114.8 mOhm Loop/5000 Mohm Insulation Resistance, Polyolefin Insulation, PVC Jacket, Teal Jacket, -5 to 70 deg C Moving/-30 to 80 deg C Fixed

Application

For stationary applications, the cabling of industrial ethernet systems, industrial environments and operating conditions with high electrical noise levels, automation technology, transport, conveyor technology and machine tool manufacturing

Standards

CE Certified | Class I and II Division 2 | CMX Outdoor | cULus Listed | DIN EN 60332-1-2/60332-3-24 | NEC Class 1 Division 2 per 501/502/505 | NFPA 79 | REACH Compliant | RoHS Compliant | UL 1685 | UL FT4 | UL AWM Style 2570

Features

  • High protection against electromagnetic interference (EMI)
  • Talc and silicone-free

Specifications

Conductor Size:22 AWG
Conductor Type:Stranded Tinned Copper
Country of Origin:AT
Insulation Material:Polyolefin
Jacket Color:Teal
Jacket Material:PVC
Number of Conductors:4 Pairs
Outside Diameter:0.338 in
Resistance:114.8 mOhm Loop/5000 Mohm Insulation
Series:ETHERNET
Strands:7
Temperature Rating:-5 to 70 deg C Moving/-30 to 80 deg C Fixed
Voltage Rating:600 V
