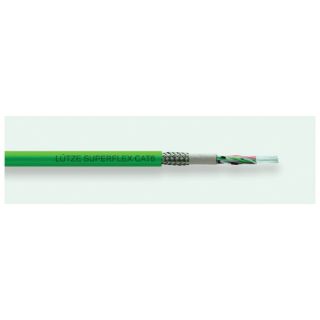

Picture of 104396 LST
Actual Product May Vary From Image

104396 LST

LUTZE SUPERFLEX® 104396 ETHERNET Cat 5e Shielded Network Cable, 300 V, (4 Pairs) 26 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: 104396
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$3.11

Product Details

Brand Name

SUPERFLEX®

Type

Cat 5e Shielded

Description

LUTZE SUPERFLEX® Network Cable, Cat 5e Shielded, Series: ETHERNET, 300 V, 4 Pairs Conductors, Stranded Bare Copper Conductor, 26 AWG Conductor, 0.264 in OD, 19 Strands, 280 mOhm Loop Resistance, Polyolefin Insulation, PUR Jacket, Green Jacket, -30 to 70 deg C Moving/-40 to 80 deg C Fixed

Application

For continuous motion applications, the cabling of industrial ethernet systems, industrial environments and operating conditions with high electrical noise levels, automation technology, transport, conveyor technology, machine tool manufacturing and continuous flexing applications in drag chains or free movement

Standards

AWM 21198 | CE Certified | DIN EN 60332-1-2/60754-1 | HF Certified | IEC 60332-1/60754-1 | NFPA 79 | REACH Compliant | RoHS Compliant | UL 1581 Part VW-1 Flame Test/FT1 | VDE 0482 322-1-2

Features

  • Compatible with all major drag chain brands
  • High protection against electromagnetic interference (EMI)
  • Talc and silicone-free

Specifications

Conductor Size:26 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:AT
Insulation Material:Polyolefin
Jacket Color:Green
Jacket Material:PUR
Number of Conductors:4 Pairs
Outside Diameter:0.264 in
Resistance:280 mOhm Loop
Series:ETHERNET
Strands:19
Temperature Rating:-30 to 70 deg C Moving/-40 to 80 deg C Fixed
Voltage Rating:300 V
