1050 1.5/1 A SP HUB

Name: 1050 1.5/1 A SP HUB
Brand: Hub City
SKU: 1050 1.5/1 A SP HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-06402

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style A B

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

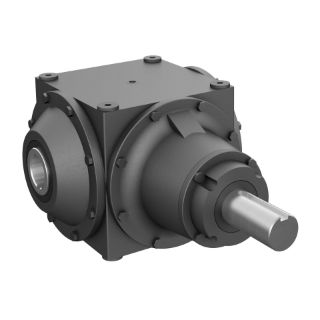

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style A B, Series: 1050, 1.5:1 Gear Ratio, 173 hp, Shaft Input, Hollow Bore Output, 2 in Dia x 4 in L Input, 2 in Dia Output, 1166.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 9350 in-lb, 15 in Centre Distance, 1/2 x 1/4 in Input/Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Ductile Iron, 13-3/4 in W x 19-3/4 in D x 9-1/2 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged ductile iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	15 in
Dimensions:	13-3/4 in W x 19-3/4 in D x 9-1/2 in H
Efficiency:	97.5 %
Gear Ratio:	1.5:1
Horsepower:	173 hp
Input Maximum Speed:	1750 rpm
Input Size:	2 in Dia x 4 in L
Input Type:	Shaft
Keyway Size:	1/2 x 1/4 in Input/Output
Lubrication Type:	Conventional Oil
Material:	Ductile Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	1166.7 rpm
Output Size:	2 in Dia
Output Type:	Hollow Bore
Series:	1050
Torque Rating:	9350 in-lb
