106000A01F200 WOO

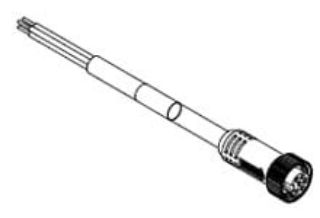

Picture of 106000A01F200 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
106000A01F200
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 12 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$111.93 / EA

Description

Brand Name

Brad®

Type

A-Size Single End

Description

Brad® Mini-Change® Woodhead® Cordset, A-Size Single Ended, Series: 130006, Straight Female x Pigtail Connector, PVC Connector, 16 AWG STOOW Cable, 6.1 m Cable Length, PVC Cable, 6 Pole, Single Keyway, 600 V, 8 A

Application

For commercial and industrial light displays, float switches on commercial sump pumps, fractional horse power motors, industrial heaters, industrial refrigeration systems, limit switches, linear position transducers and load cells

Standards

CSA File No. LR6837 | UL File No. E152210

Features

  • Patented, Quad Beam socket contact with stainless steel sleeve, maintains consistent pressure on the male pin to ensure optimum conductivity
  • High performance, long-lasting plating that maintains low resistance through many mate /unmate cycles
  • Easier alignment and mating of connector
  • Provides 100 pounds minimum cable strain relief radiates stress in side-loaded conditions
  • Prevents the entry of water during temporary submersion at a limited depth
  • 16 AWG yellow cable
  • Copper alloy contact, black epoxy coated zinc coupling nut, gold plating mating
  • 0.54 in cable diameter
  • -20 to 105 deg C operating temperature

Specifications

Amperage Rating:8 A
Cable Length:6.1 m
Cable Material:PVC
Cable Type:16 AWG STOOW
Connector Material:PVC
Connector Size:7/8-16 UN
Connector Type:Straight Female x Pigtail
Country of Origin:MX
Keyway:Single
NEMA Rating:NEMA IP67
Number of Poles:6
Series:130006
Voltage Rating:600 VAC
Wire Pin Colors:Black/Blue/Green/Orange/Red/White
