107015.00 LEE

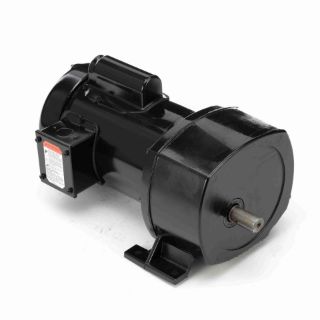

Picture of 107015.00 LEE
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
107015.00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,394.17 / EA

Description

Brand Name

LEESON®

Type

Parallel Shaft Continuous Duty

Description

LEESON® Gear Motor, Parallel Shaft Continuous Duty, Series: P1100, 115/208 to 230 VAC, 8.8/4.4 A Full Load Amperage, 0.5 hp, 60 Hz Frequency, 1 ph, 91 rpm Maximum, 3/4 in Shaft Diameter, 1-1/2 in Shaft Length, Reversible Rotation, 336 in-lb Torque, 19:1 Gear Ratio, Right-Angle Capacitor Start Motor, Ball Bearing, 575 lb Overhung Load, Special Mounting, 40 deg C Ambient, Class F Insulation, Totally Enclosed Fan Cooled Enclosure, Die Cast Aluminum Housing Material, 14.17 in L x 8.13 in W x 7.69 in H Dimensions

Standards

AGMA Class 9 | CSA Certified | UL Listed

Features

  • Rugged die cast aluminum gear housing for maximum gear and bearing support
  • Precision machined gearing and hardened for maximum load capability
  • All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%
  • Oversized output bearings for greater overhung load capacity and long life
  • High carbon alloy output shaft provides maximum strength and rigidity
  • All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
  • Heavy duty industrial oil seals keep lubricant in and dirt out
  • Gears and bearings are splash lubricated with permanent, heavy duty gear oil
  • Fractional horsepower AC motors
  • Capacitor start designs rated for 115/230VAC 60 Hz

Includes

Conduit Box

Specifications

Bearing Type:Ball
Country of Origin:US
Dimensions:14.17 in L x 8.13 in W x 7.69 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frequency Rating:60 Hz
Full Load Amperage:8.8/4.4 A
Gear Ratio:19:1
Horsepower:0.5 hp
Housing Material:Die Cast Aluminum
Insulation Type:Class F
Maximum Speed:91 rpm
Motor Type:Right-Angle Capacitor Start
Mounting Type:Special
Overhung Load:575 lb
Phase:1
Rotation Type:Reversible
Series:P1100
Shaft Diameter:3/4 in
Shaft Length:1-1/2 in
Temperature Rating:40 deg C Ambient
Torque Rating:336 in-lb
Voltage Rating:115/208 to 230 VAC
