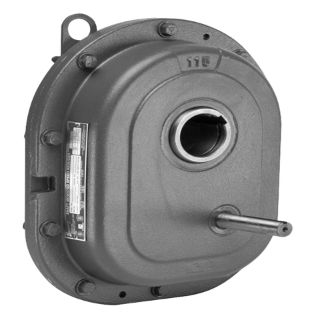

Actual Product May Vary From Image

107SMFP15 BRN

Name: 107SMFP15 BRN
Brand: Regal Rexnord
SKU: 107SMFP15 BRN
Availability: OutOfStock

Browning® TorqTaper® Plus PB1003 Type SMFP Shaft Mount Reducer, Solid Shaft Input, Finished Bore Output, 1 hp, 15:1 Gear Ratio, 116.67 rpm Maximum Output, 36.013 in-lb Input/432.15 in-lb Output Torque Rating

Manufacturer: Regal Rexnord

Manufacturer part number: PB1003

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type SMFP

Description

Shaft mount reducers are enclosed helical gear reducers with a hollow output. They are mounted directly on the input shaft of the driven machine and are supported by the shaft and torque arm arrangement or motor mount frame. This eliminates the need for additional components to transmit torque from the reducer to the equipment.

Browning® TorqTaper® Plus Shaft Mount Reducer, Type SMFP, 15:1 Gear Ratio, 1 hp, Solid Shaft Input, Finished Bore Output, 0.75 in Dia x 4.08 in L Input, 1-7/16 in Output, 116.67 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 36.013 in-lb Input/432.15 in-lb Output, 3.77 in Centre Distance, 3/8 x 1/8 in Output Keyway, 80 % Efficiency, Synthetic/Mineral Oil Lubrication, 9.76 in L x 10.1 in W x 12.07 in H

Application

Aggregate and Cement, Agriculture, Grain, Minerals and Mining, Unit Handling, Water and Wastewater

Standards

AGMA Standard

Features

Eliminates the need for a bushing
Fewer components to assemble
Manufactured in 1/16 in increments to meet most user-defined shaft sizes
Robust reducer-to-drive shaft connection

Specifications

Centre Distance:	3.77 in
Country of Origin:	US
Dimensions:	9.76 in L x 10.1 in W x 12.07 in H
Efficiency:	80 %
Gear Ratio:	15:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	0.75 in Dia x 4.08 in L
Input Type:	Solid Shaft
Keyway Size:	3/8 x 1/8 in Output
Lubrication Type:	Synthetic/Mineral Oil
Output Maximum Speed:	116.67 rpm
Output Size:	1-7/16 in
Output Type:	Finished Bore
Torque Rating:	36.013 in-lb Input/432.15 in-lb Output
