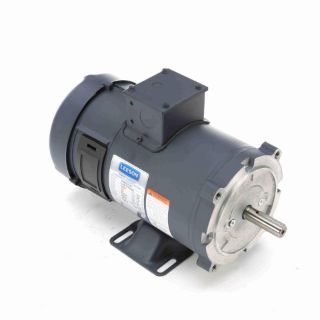

Actual Product May Vary From Image

108052.00 LEE

Name: 108052.00 LEE
Brand: Leeson Electric
SKU: 108052.00 LEE
Price: 969.27 USD
Availability: OutOfStock

LEESON® 108052.00 4-Pole Continuous Duty Low Voltage DC Motor, 26.3 in-lb Torque, 0.56 kW Power Rating, 24 VDC, 29 A, S56C Frame, 1800 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 108052.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$969.27

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty Low Voltage

Description

LEESON® DC Motor, 4-Pole Continuous Duty Low Voltage, Permanent Magnet DC Motors Special Features, 0.56 kW Power, 24 VDC, 29 A, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 26.3 in-lb Torque, Bolt-On/C-Face/Footed/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 12.82 in L x 6.5 in W x 8.17 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Permanent Magnet DC Motors

Specifications

Amperage Rating:	29 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	12.82 in L x 6.5 in W x 8.17 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	S56C
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Bolt-On/C-Face/Footed/Rigid Base
Number of Speeds:	1
Power Rating:	0.56 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	26.3 in-lb
Voltage Rating:	24 VDC
