Actual Product May Vary From Image

108351A LST

Name: 108351A LST
Brand: Lutze
SKU: 108351A LST
Price: 0.91 USD
Availability: OutOfStock

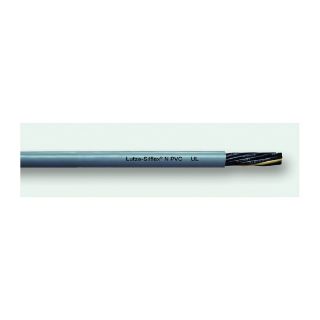

LUTZE SILFLEX® 108351A 108A Unshielded Flexible Control Cable, 600 V, (4) 20 AWG Stranded Bare Copper Conductor

Manufacturer: Lutze

Manufacturer part number: 108351A

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.91

Qty:

Product Details

Brand Name

Silflex®

Type

Unshielded

Description

LUTZE SILFLEX® Flexible Control Cable, Unshielded, Series: 108A, 600 V, 4 Conductors, Stranded Bare Copper Conductor, 20 AWG Conductor, 0.255 in OD, 10/30 Strands, PVC Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C Static

Application

For machine and plant construction, HVAC technology, assembly and production lines and many other industrial applications and stationary applications

Standards

Features

Flexible control cable for stationary applications
Multi-conductor control cable for machine and plant construction, HVAC technology, assembly and production lines and many other industrial applications
Easy strip design especially suited for cable assemblies
Most flexible design without nylon for easy stripping and easy installation
Easy routing and bending due to flexibility
Resistant to mineral oils, coolants and solvents
Non-wicking fillers
Talc and silicone-free

Specifications

Conductor Size:	20 AWG
Conductor Type:	Stranded Bare Copper
Country of Origin:	US
Insulation Material:	PVC
Jacket Color:	Gray
Jacket Material:	PVC
Number of Conductors:	4
Outside Diameter:	0.255 in
Series:	108A
Strands:	10/30
Temperature Rating:	-40 to 90 deg C Static
Voltage Rating:	600 V
