108354A LST

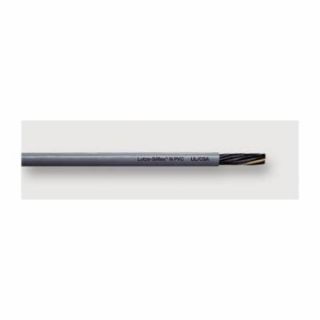

Picture of 108354A LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
108354A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2.24 / EA

Description

Brand Name

LUTZE

Type

Flexible Multi-Conductor Unshielded

Description

LUTZE Control Cable, Flexible Multi-Conductor Unshielded, 600 VAC, 12 Conductors, Bare Stranded Copper Conductor, 20 AWG Conductor, 0.424 in OD, 10/30 Strands, PVC Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C

Application

For machine tools, handling equipment, machine and plant construction, transport and conveying technology

Standards

UL AWM Style 2587 | UL-VW-1 | CSA AWM | I/II A/B FT4 | Oil Res II | cURus | CE Certified | REACH Compliant | RoHS Compliant

Features

  • Most flexible design without nylon for easy stripping and easy installation
  • Easy routing and bending due to flexibility
  • Specially formulated gray PVC jacket for oil-resistant
  • Resistant to mineral oils, coolants and solvents
  • Easy strip design specially suited for cable assemblies
  • Flame retardant, mineral oil-resistant, coolant-resistant, solvent-resistant and silicone-free jacket
  • 4xD minimum bending radius fixed
  • Black with white number print, green/yellow conductor marking

Specifications

Conductor Size:20 AWG
Conductor Type:Bare Stranded Copper
Insulation Material:PVC
Jacket Color:Gray
Jacket Material:PVC
Number of Conductors:12
Outside Diameter:0.424 in
Strands:10/30
Temperature Rating:-40 to 90 deg C
Voltage Rating:600 VAC
