Actual Product May Vary From Image

108381A LST

Name: 108381A LST
Brand: Lutze
SKU: 108381A LST
Price: 1.77 USD
Availability: OutOfStock

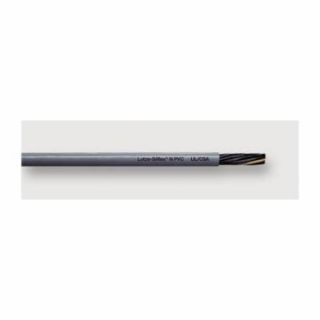

LUTZE 108381A Flexible Multi-Conductor Unshielded Control Cable, 600 VAC, (4) 14 AWG Bare Stranded Copper Conductor

Manufacturer: Lutze

Manufacturer part number: 108381A

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.77

Qty:

Product Details

Brand Name

LUTZE

Type

Flexible Multi-Conductor Unshielded

Description

LUTZE Control Cable, Flexible Multi-Conductor Unshielded, 600 VAC, 4 Conductors, Bare Stranded Copper Conductor, 14 AWG Conductor, 0.38 in OD, 41/30 Strands, PVC Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C

Application

For machine tools, handling equipment, machine and plant construction, transport and conveying technology

Standards

Features

Most flexible design without nylon for easy stripping and easy installation
Easy routing and bending due to flexibility
Specially formulated gray PVC jacket for oil-resistant
Resistant to mineral oils, coolants and solvents
Easy strip design specially suited for cable assemblies
Flame retardant, mineral oil-resistant, coolant-resistant, solvent-resistant and silicone-free jacket
4xD minimum bending radius fixed
Black with white number print, green/yellow conductor marking

Specifications

Conductor Size:	14 AWG
Conductor Type:	Bare Stranded Copper
Insulation Material:	PVC
Jacket Color:	Gray
Jacket Material:	PVC
Number of Conductors:	4
Outside Diameter:	0.38 in
Strands:	41/30
Temperature Rating:	-40 to 90 deg C
Voltage Rating:	600 VAC
