108383A LST

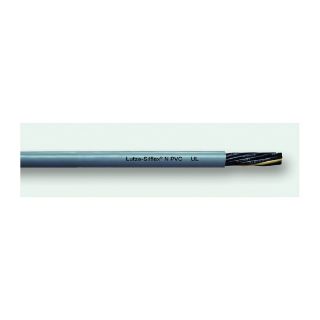

Picture of 108383A LST
Actual Product May Vary From Image

Product Details

Manufacturer:
Lutze
Manufacturer part number:
108383A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3.48 / FT

Description

Brand Name

Silflex®

Type

Unshielded

Description

LUTZE SILFLEX® Flexible Control Cable, Unshielded, Series: 108A, 600 V, 7 Conductors, Stranded Bare Copper Conductor, 14 AWG Conductor, 0.529 in OD, 41/30 Strands, PVC Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C Static

Application

For machine and plant construction, HVAC technology, assembly and production lines and many other industrial applications and stationary applications

Standards

AWM I/II A/B FT4 | CE Certified | FT4 Certified | NFPA 79 Article 12.9 | Oil Res II | REACH Compliant | RoHS Compliant | UL AWM Style 2587 | UL Recognized | UL VW-1

Features

  • Flexible control cable for stationary applications
  • Multi-conductor control cable for machine and plant construction, HVAC technology, assembly and production lines and many other industrial applications
  • Easy strip design especially suited for cable assemblies
  • Most flexible design without nylon for easy stripping and easy installation
  • Easy routing and bending due to flexibility
  • Resistant to mineral oils, coolants and solvents
  • Non-wicking fillers
  • Talc and silicone-free

Specifications

Conductor Size:14 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:US
Insulation Material:PVC
Jacket Color:Gray
Jacket Material:PVC
Number of Conductors:7
Outside Diameter:0.529 in
Series:108A
Strands:41/30
Temperature Rating:-40 to 90 deg C Static
Voltage Rating:600 V
