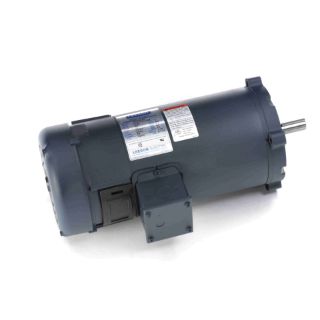

Actual Product May Vary From Image

109096.00 LEE

Name: 109096.00 LEE
Brand: Leeson Electric
SKU: 109096.00 LEE
Price: 1,167.58 USD
Availability: OutOfStock

LEESON® 109096.00 4-Pole Continuous Duty DC Motor, 36 in-lb Torque, 0.75 kW Power Rating, 90 VDC, 10 A, S56C Frame, 1750 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 109096.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,167.58

Qty:

Product Details

Brand Name

LEESON®

Type

4-Pole Continuous Duty

Description

LEESON® DC Motor, 4-Pole Continuous Duty, 0.75 kW Power, 90 VDC, 10 A, 1750 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, S56C Frame, 0.625 in Dia x 2.06 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 36 in-lb Torque, Round/C-Face/Footless Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 14.82 in L Dimensions

Application

Pumps, Conveyors, Turntables, Textile Machinery, Treadmills, Reeling Equipment, Sports Equipment and Medical Equipment

Standards

CSA Certified | UL Listed

Features

Brush holder design provides easy access to brushes
Large oversized brushes assure long brush life
Capable of dynamic braking
PWM or SCR type controller rated
High starting torque
Permanently lubricated sealed ball bearings
Higher hp and speed achievable using PWM type DC controls
Dynamically balanced armatures
30:1 constant torque operation

Specifications

Amperage Rating:	10 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	14.82 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	S56C
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Round/C-Face/Footless
Number of Speeds:	1
Power Rating:	0.75 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	1750 rpm
Temperature Rating:	40 deg C
Torque Rating:	36 in-lb
Voltage Rating:	90 VDC
