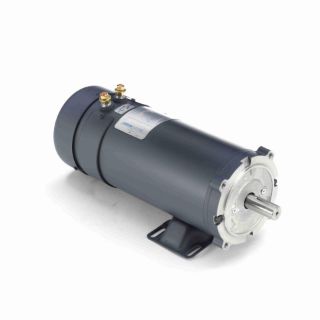

Actual Product May Vary From Image

109106.00 LEE

Name: 109106.00 LEE
Brand: Leeson Electric
SKU: 109106.00 LEE
Price: 2,141.39 USD
Availability: OutOfStock

LEESON® 109106.00 Continuous Duty Low Voltage DC Motor, 70 in-lb Torque, 70 kW Power Rating, 24 VDC, 70 A, ZLS56CZ Frame, 1800 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 109106.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,141.39

Qty:

Product Details

Brand Name

LEESON®

Type

Continuous Duty Low Voltage

Description

LEESON® DC Motor, Continuous Duty Low Voltage, Permanent Magnet DC Motors Special Features, 70 kW Power, 24 VDC, 70 A, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, ZLS56CZ Frame, 0.625 in Dia x 2.06 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 70 in-lb Torque, Bolt-On/C-Face/Footed/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 16.74 in L x 6.5 in W x 7.31 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Permanent Magnet DC Motors

Specifications

Amperage Rating:	70 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	16.74 in L x 6.5 in W x 7.31 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	ZLS56CZ
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Bolt-On/C-Face/Footed/Rigid Base
Power Rating:	70 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	70 in-lb
Voltage Rating:	24 VDC
