109108.00 LEE

Name: 109108.00 LEE
Brand: Leeson Electric
SKU: 109108.00 LEE
Price: 2,009.17 USD
Availability: OutOfStock

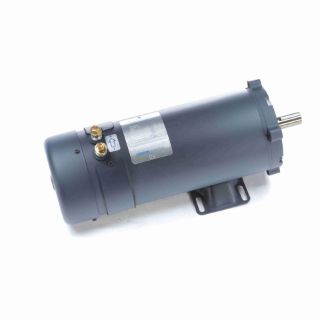

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

109108.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$2,009.17 / EA

Description

Brand Name

LEESON®

Type

Continuous Duty Low Voltage

Description

LEESON® DC Motor, Continuous Duty Low Voltage, Permanent Magnet DC Motors Special Features, 1.49 kW Power, 48 VDC, 38 A, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, ZLS56CZ Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 70 in-lb Torque, Bolt-On/C-Face/Footed/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Rolled Steel, 16.74 in L x 6.5 in W x 7.31 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed

Features

Permanent Magnet DC Motors

Specifications

Amperage Rating:	38 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	16.74 in L x 6.5 in W x 7.31 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	ZLS56CZ
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Bolt-On/C-Face/Footed/Rigid Base
Power Rating:	1.49 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Torque Rating:	70 in-lb
Voltage Rating:	48 VDC
