Actual Product May Vary From Image

109298.00 LEE

Name: 109298.00 LEE
Brand: Leeson Electric
SKU: 109298.00 LEE
Price: 1,675.00 USD
Availability: OutOfStock

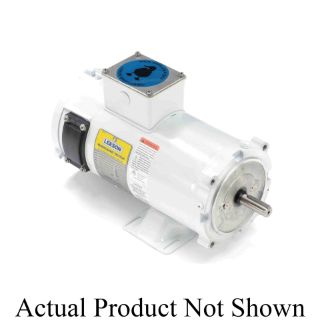

LEESON® Washguard® 109298.00 Continuous Duty Low Voltage DC Motor, 0.37 kW Power Rating, 12 VDC, 39 A, S56C Frame, 1800 rpm Speed

Manufacturer: Leeson Electric

Manufacturer part number: 109298.00

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,675.00

Qty:

Product Details

Brand Name

LEESON®

Type

Continuous Duty Low Voltage

Description

LEESON® Washguard® DC Motor, Continuous Duty Low Voltage, Washdown Duty Motors Special Features, 0.37 kW Power, 12 VDC, 39 A, 1800 rpm Speed, Totally Enclosed Nonvented (TENV) Enclosure, S56C Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class H, 11.77 in L x 6.5 in W x 6.67 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CSA Certified | UL Listed | USDA Approved

Features

Washdown Duty Motors

Specifications

Amperage Rating:	39 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	11.77 in L x 6.5 in W x 6.67 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	S56C
Insulation Class:	Class H
Mounting Type:	C-Face/Rigid Base
Power Rating:	0.37 kW
Rotation:	Reversible
Service Factor:	1
Shaft Size:	0.63 in Dia x 1.88 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	12 VDC
