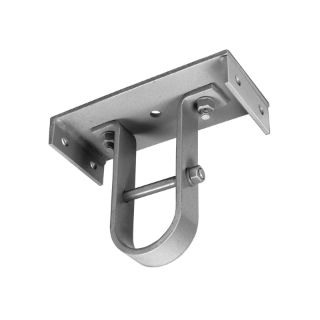

Martin 10CH2164 Conveyor Hanger, 216 Style, 10 in Dia Conveyor, 2 in Coupling
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 10CH2164
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Martin

Description

No. 216 hangers are designed for heavy duty applications. This hanger is flush mounted inside the trough permitting dust tight or weather proof operation. Hard iron or bronze bearings are normally furnished, however, the hanger can be furnished with other bearings.
Martin Conveyor Hanger, 216 Style, 10 in Conveyor Diameter, 2 in Coupling, 2-1/2 in Mounting Hole Center, 3/8 x 1-1/4 in Bolt, 11 in Top Frame Length, 4-1/2 in Top Frame Width, 1/4 in Top Frame Thickness, 4 Mounting Bolts, 7/16 x 1-1/16 in Slot, Steel

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:3/8 x 1-1/4 in
Conveyor Diameter:10 in
Country of Origin:US
Coupling Size:2 in
Material:Steel
Mounting Hole Center:2-1/2 in
Number of Mounting Bolts:4
Slot Size:7/16 x 1-1/16 in
Style:216
Top Frame Length:11 in
Top Frame Thickness:1/4 in
Top Frame Width:4-1/2 in
