10CH2264 MSG

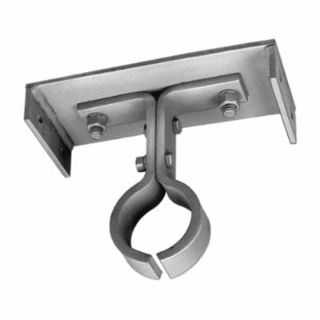

Martin 10CH2264 Conveyor Hanger, 226 Style, 10 in Dia Conveyor, 2 in Coupling
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 10CH2264
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$152.08

Product Details

Brand Name

Martin

Description

No. 226 hangers are designed for flush mounting inside the trough permitting dust-tight or weather-proof operation. This type hanger allows for minimum obstruction of material flow in high capacity conveyors. Available with friction type bearing.
Martin Conveyor Hanger, 226 Style, 10 in Conveyor Diameter, 2 in Coupling, 2-1/2 in Mounting Hole Center, 1/2 x 1-3/4 in Bolt, 11 in Top Frame Length, 4-1/2 in Top Frame Width, 1/4 in Top Frame Thickness, 4 Mounting Bolts, 7/16 x 1-1/16 in Slot, Steel

Standards

CEMA Standard | PTDA Certified

Specifications

Bolt Size:1/2 x 1-3/4 in
Conveyor Diameter:10 in
Country of Origin:US
Coupling Size:2 in
Material:Steel
Mounting Hole Center:2-1/2 in
Number of Mounting Bolts:4
Slot Size:7/16 x 1-1/16 in
Style:226
Top Frame Length:11 in
Top Frame Thickness:1/4 in
Top Frame Width:4-1/2 in
