Name: 10CH3264 MSG
Brand: Martin Sprocket & Gear
SKU: 10CH3264 MSG
Availability: OutOfStock

10CH3264 MSG

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

10CH3264

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Description

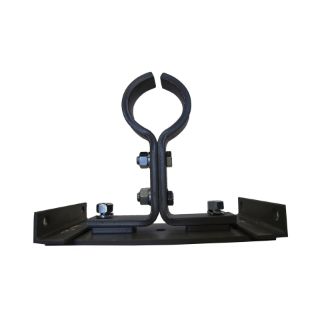

No. 326 hangers are designed to permit minimum obstruction of material flow and are used in conveyors where abnormal heat requires unequal expansion between the screw and the conveyor trough. Hard iron or bronze bearings are normally furnished, but other type bearings are available.

Martin Conveyor Hanger, 326 Style, 10 in Conveyor Diameter, 2 in Coupling, 4-1/2 in Mounting Hole Center, 3/8 x 1 in Bolt, 11 in Top Frame Length, 6 in Top Frame Width, 3/16 in Top Frame Thickness, 4 Mounting Bolts, Steel

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:	3/8 x 1 in
Conveyor Diameter:	10 in
Coupling Size:	2 in
Material:	Steel
Mounting Hole Center:	4-1/2 in
Number of Mounting Bolts:	4
Style:	326
Top Frame Length:	11 in
Top Frame Thickness:	3/16 in
Top Frame Width:	6 in
