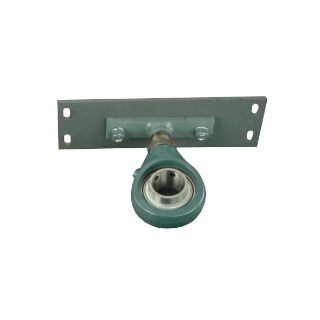

Martin 10CH603 Conveyor Hanger, 60 Style, 10 in Dia Conveyor, 1-1/2 in Coupling
Manufacturer: Martin Sprocket & Gear
Manufacturer part number: 10CH603
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Martin

Description

No. 60 hangers are furnished with a heavy duty, permanently lubricated and sealed, self-aligning ball bearing which permits temperatures up to 245 deg F and will allow for up to 4 deg shaft misalignments. This hanger is mounted on top of the trough flanges. Grease fitting can be furnished if specified.
Martin Conveyor Hanger, 60 Style, 10 in Conveyor Diameter, 1-1/2 in Coupling, 2-1/2 in Mounting Hole Center, 1/2 x 2 in Bolt, 14-1/2 in Top Frame Length, 4-1/2 in Top Frame Width, 1/4 in Top Frame Thickness, 2 Mounting Bolts, 7/16 x 1-1/16 in Slot, Steel

Standards

CEMA Standard

Features

Laser cut flat pieces to ensure consistent finish and high quality

Specifications

Bolt Size:1/2 x 2 in
Conveyor Diameter:10 in
Country of Origin:US
Coupling Size:1-1/2 in
Material:Steel
Mounting Hole Center:2-1/2 in
Number of Mounting Bolts:2
Slot Size:7/16 x 1-1/16 in
Style:60
Top Frame Length:14-1/2 in
Top Frame Thickness:1/4 in
Top Frame Width:4-1/2 in
